RAIN Sustainable Irrigation Tour

RAIN Irrigation is inviting growers to their upcoming field days:

  • July 25 at 1 pm in Coaldale, AB hosted at 845 Spud Farms Ltd.
  • August 8 at 1 pm in MacGregor, MB hosted at Cascade Farms
REGISTER NOW


    Coaldale, ABMacGregor, MB

    a

    WHY IT WORKS

    Our RAIN Irrigation System applies the water at a rate that allows the soil to absorb it efficiently. This means you can use up to 50% less water to achieve an up to 20% yield increase. RAIN works with your existing pivot systems to achieve target soil moisture uniformly. The key to this is understanding soil infiltration capacity.
    USE UP TO
    Less Water
    foot coverage chart

    1. INFILTRATION CURVE

    Water application exceeding this soil infiltration curve will cause inconsistent soil moisture in the field.

    2. Traditional Sprinkler System Curve

    The Orange area represents the water that is being wasted by being redistributed to low spots because the soil has become oversaturated.

    3. RAIN SPRINKLER SYSTEM

    These two lower curves represent the RAIN sprinkler System. With the leading sprinkler applying more water then the following one to stay under the infiltration curve.

    HOW IT WORKS

    The key to improving water efficiency is to reduce application intensity by increasing the wetted area under the pivot. RAIN’s unique sprinkler offsets are designed to do exactly this, creating an even distribution over a larger area, improving infiltration and reducing plant stress and water pooling.
    VS

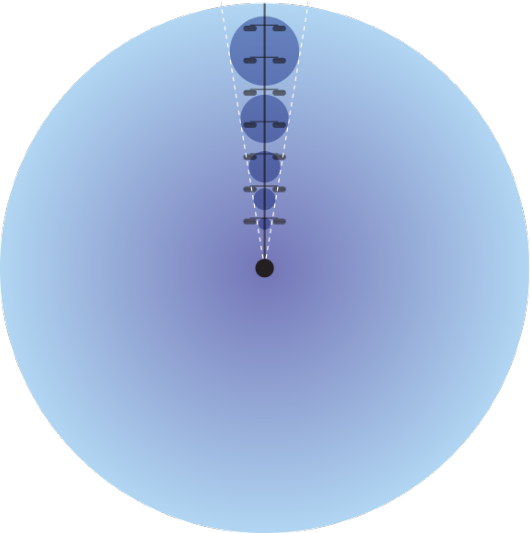

    Traditional Sprinkler System

    • - More plant stress
    • - Feast or famine 3" per hour intensity
    • - Water pools in low spots and pivot center
    Traditional Sprinkler System

    RAIN System

    • - Less plant stress
    • - "1" per hour intensity, uniform soil moisture"
    • - Even distribution over entire area
    RAIN System
    Increase the Wetted area of Your Sprinkler System.
    a

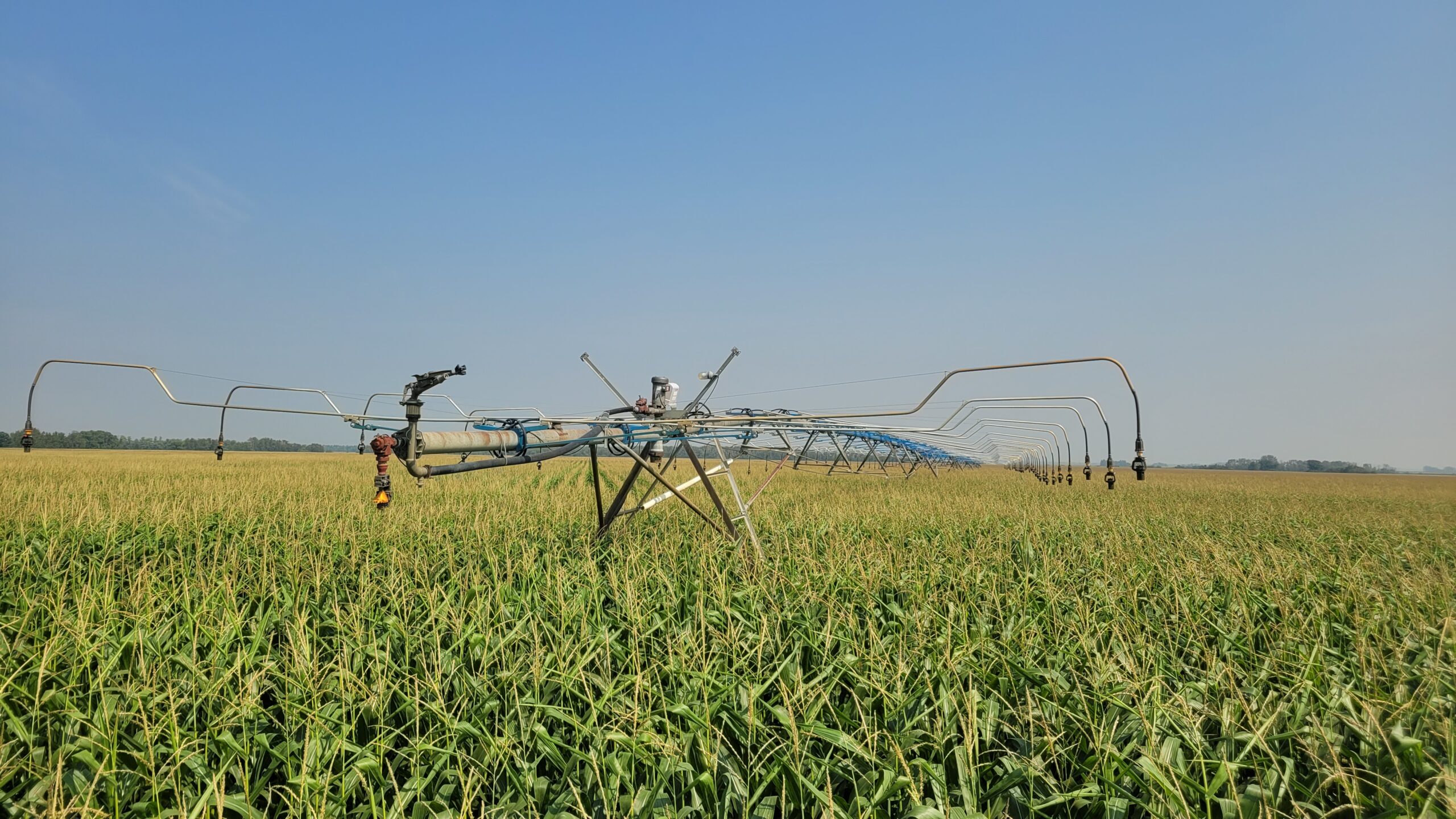

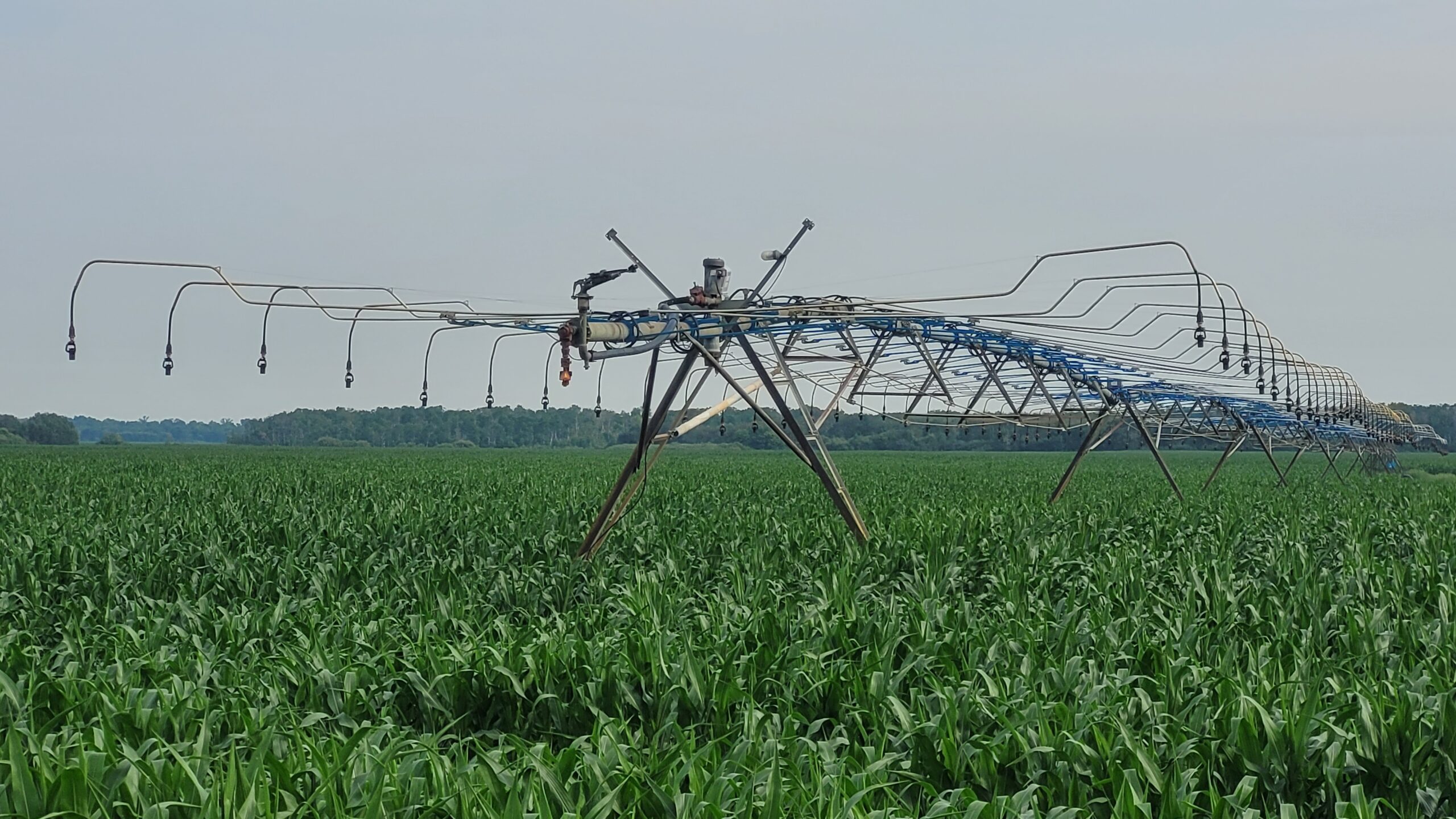

    RAIN Sprinkler System

    Sprinklers can be lifted 6.5 feet, so they are above corn canopy

    The lower height setting, for lower profile crops, helps reduce evaporation and windage

    Sprinklers can be lifted 6.5 feet, so they are above corn canopy

    Sprinklers can be lifted 6.5 feet, so they are above corn canopy

    The lower height setting, for lower profile crops, helps reduce evaporation and windage

    The lower height setting, for lower profile crops, helps reduce evaporation and windage

    a

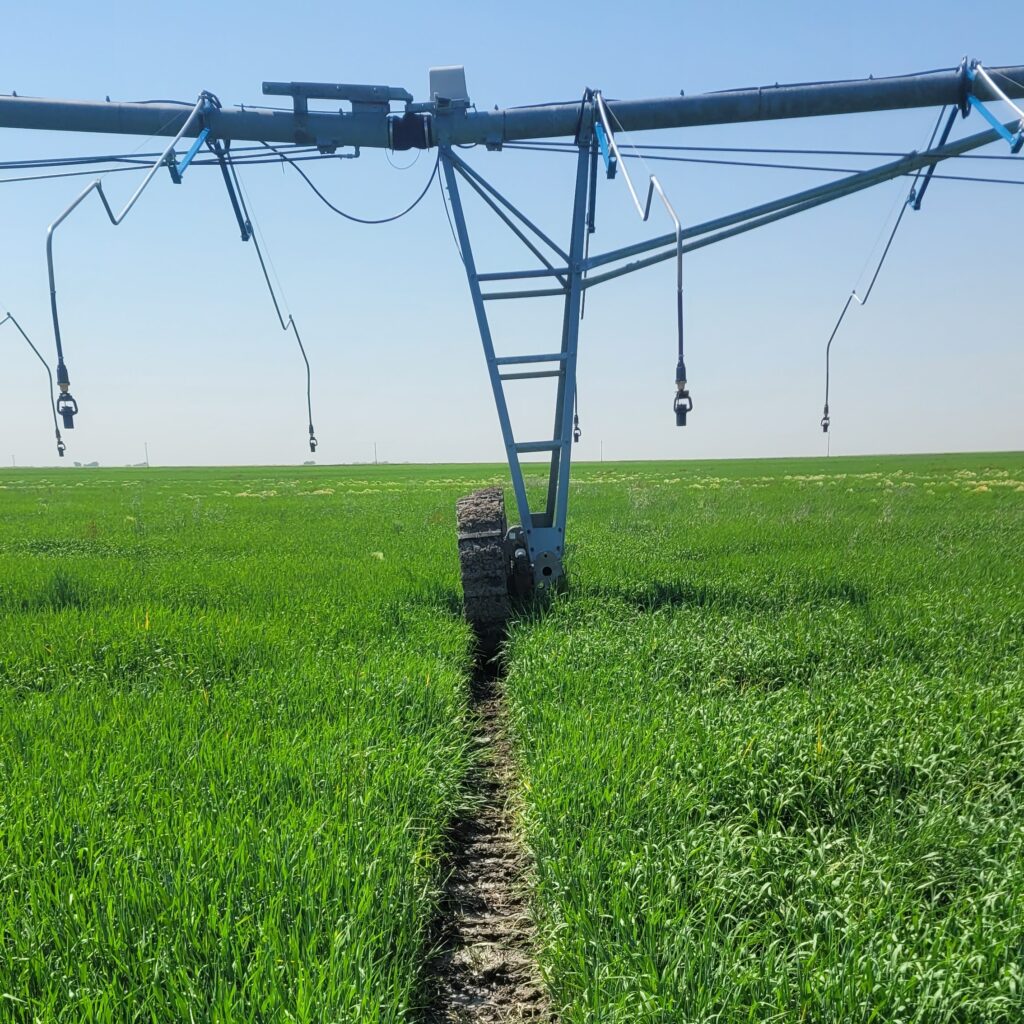

    Wheel Rut Prevention

    Use the Rain Sprinkler Offset at your pivot towers for the most effective wheel rut prevention for pivots there is. This works by reducing apparition intensity by up to 400%, which allows the water to infiltrate your soil effectively and not pool and redistribute in the wheel tracks that eventually cause wheel ruts.
    wheel rut prevention
    quote

    RAIN does not mitigate soil moisture problems; we eliminate the conditions that cause them to occur in the first place.

    – Matt Waldner, CEO, RAIN
    a
    WANT TO LEARN MORE?

    LET’S TALK

    Matt Waldner, CEO
    RAIN Irrigation
    (204) 871-2118
